Undisputed leaders in specialized engineering for the hydrocarbon industry, Hot Tapping, Line Stop, mechanical integrity assessment, utilizing cutting-edge internal pipeline inspection technologies, environmental control, and ecological restoration under the highest standards.
We consolidate a fully transparent and auditable record of our most significant works and supplies. 100% traceable data in strict compliance with international procurement standards and protocols.
| Contract Ref: | 4600060510 / 1B-121-013-D-15-N-5686 |
| Technical Standard: | ASME B31.3 / API RP 2201 |
| Operation: | Hot Tapping & Double Line Stop |
| Pressure / Medium: | 1,240 PSI / GAS |
| Contract Ref: | 3N-069-001-A15-N-5605 |
| Diameter: | 10" (Angular) |
| Operation: | In-Service 45° Angular Hot Tapping |
| Application / Year: | Free Water Separation / 2015 |
| Contract Ref: | Direct Award |
| Technical Standard: | ASME B31.4 / ASME Sec IX |
| Operation: | In-Service Mechanical Restoration |
| Pressure / Medium: | 900 PSI / Diluent (Los Potocos) |
| Contract Ref: | 50831-000-CA-CSC-C-063 |
| Assigned Equipment: | TDW 1200-G Hot Tapping Machine |
| Operation: | Level III Maintenance & Certification |
| Status / Year: | Operational & Certified / 2018 |
| Contract Ref: | 46000985892 |
| Diameters: | Ø 16" / Ø 26" / Ø 30" |
| Operation: | Main Oil Pipeline Segment Replacement |
| Pressure / Year: | Various / 2019 |
| Contract Ref: | PIT-CT-042-07102024-SM-R2 / PS-001 |
| Diameters: | Ø 30" / Ø 16" / Ø 8" |
| Operation: | Replacement & Line Stop Isolation |
| Pressure / Medium: | 600 PSI / Heavy Crude / Light / Naphtha |
Operational Certification and Traceability: All Contract Codes, Welding Procedure Specifications (WPS), Procedure Qualification Records (PQR), Non-Destructive Testing (NDT) records via Ultrasound/Radiography, and physical delivery/acceptance certificates are strictly safeguarded in our engineering archives.
High-level Comprehensive Engineering and Technical Solutions applied to the maintenance of Oil & Gas transport systems from Level I to V, strictly adhering to Industrial Safety, Environmental Management, and Occupational Health standards across all projects.
Strictly aligned with PDVSA's Maintenance Manual (Standards MM-01-01-03 and MM-01-01-04) and reinforced under the most demanding global standards (API 570, API RP 2201, ASME PCC-2, ISO 14224), our operational catalog covers all five levels of industrial maintenance to ensure safety and continuity.
Visual inspections and operational maintenance under ISO 14224 / API RP 754.
Non-destructive testing (NDT) and corrosion monitoring under API 570 / NACE.
Preventive maintenance and pressure tests under API 598 / ASME standards.
Hot tapping repairs and bypasses under API RP 2201 / ASME PCC-2 guidelines.
Overhauls of TDW machinery, cylinders, and Sandwich Valves under API Q1 / API 6D.
We perform Hot Tapping for temporary and permanent interconnections, as well as articulated plugging (Line Stop), ensuring operational continuity in strict compliance with the API RP 2201 standard. We guarantee the maximum safety and reliability of active systems up to 42" and 2,200 PSI.
Comprehensive maintenance and certification of Hot Tapping and articulated Line Stop machinery. With our technical dedication, we guarantee the mechanical integrity and long-term reliability of your critical operational assets.
Advanced solutions for the management of environmental liabilities and ecosystem restoration. We strictly comply with MINEC regulations to mitigate industrial impact and safeguard ecosystems.

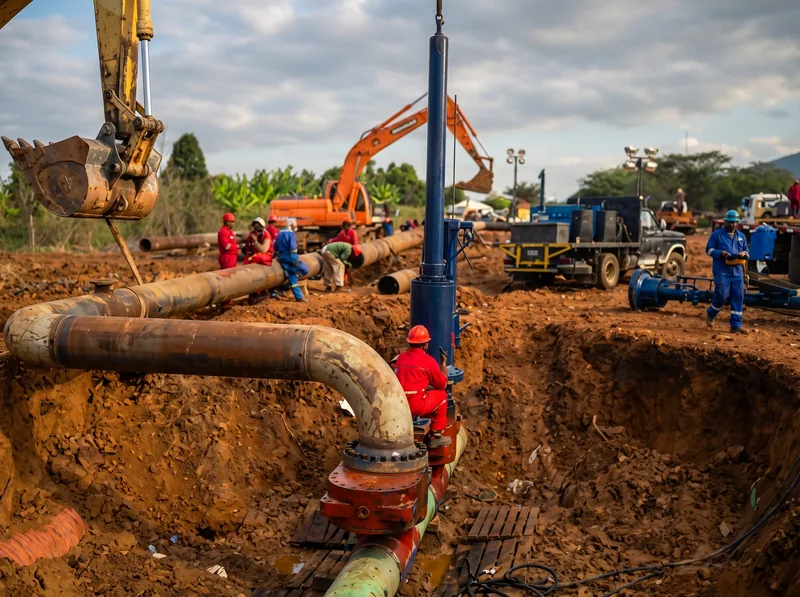

Urgent restoration of an active Ø 20" diluent pipeline. A highly critical intervention featuring 4 Hot Taps and double Line Stop isolations, ensuring absolute operational continuity at a working pressure of 890 PSI while transporting Naphtha. Executed in compliance with the most rigorous safety and efficiency standards, achieving the goal in a record time of 48 hours.
Our operational capability is measured by tangible results. We guarantee technical precision, extreme safety, and strict compliance with international regulations in every single intervention.
Zero lost-time incidents during highly critical high-pressure interventions in flammable atmospheres.
Absolute commitment to environmental protection during complex Hot Tapping and plugging operations.
Successful specialized solutions across major Oil & Gas transport networks and processing plants.
Immediate technical support and deployment readiness to address any operational emergency in your infrastructure.
Welding procedures fully certified under rigorous ASME Sec IX and API 1104 specifications.
Strict inspection through Non-Destructive Testing (NDT) on 100% of pipeline weld connections.
Uninterrupted leadership in supplying advanced pipeline engineering solutions in Venezuela.
Major national and private operating companies rely on our high-end engineering standards.
We stand behind our operations with solid foundations of quality, technical norm compliance, and innovation.
Cabal compliance with client technical specifications and PDVSA/COVENIN, API RP 2201, API 1104, ASME Sec IX, API 1106, API 570, and API RP 577 standards.
All our hot tapping equipment and instruments carry active, up-to-date calibration and hydrostatic testing certifications.
Rapid response, continuous technical support, and constant field engineering to ensure the business continuity of your assets.
Tailored metallurgical configurations and special alloy designs to perform safe drilling and hot taps on extreme temperature lines.
Engineers and welders with active qualification credentials, trained under the HSEQ standards of the oil and gas industry.
Deployment of latest-generation hydraulic machinery featuring double-barrier seals that completely prevent leaks to the outside environment.
Operational protocols that strictly integrate environmental safety, industrial security, and occupational health at every phase.
Scheduled and preventive maintenance programs for our equipment fleet to guarantee absolute reliability before deployment.
Our expert team of engineers and technicians is available 24/7 to address your needs with high-end technology and unparalleled quality.
